Basic Pro 12

Industrial technology for the price of a cobot system

BASIC 12 COMPACT 12 PREMIUM 25/35 BIG 35/70
HALTER Basic Pro 12
HALTER Basic Pro 12

Basic Pro 12

Turning/Milling

Basic Pro is our basic loading robot for turning and milling.

  • For turning and milling

  • Maximum diameter 135 mm - maximum dimension LxW 135 mm x 135 mm

  • Industrial Fanuc robot and high-quality components for a long, reliable service life

  • New series set-up within 5 minutes

  • No compromise on safety - with floor scanner and safety zone

  • Minimum floor space

  • Industrial technology for the price of a cobot system

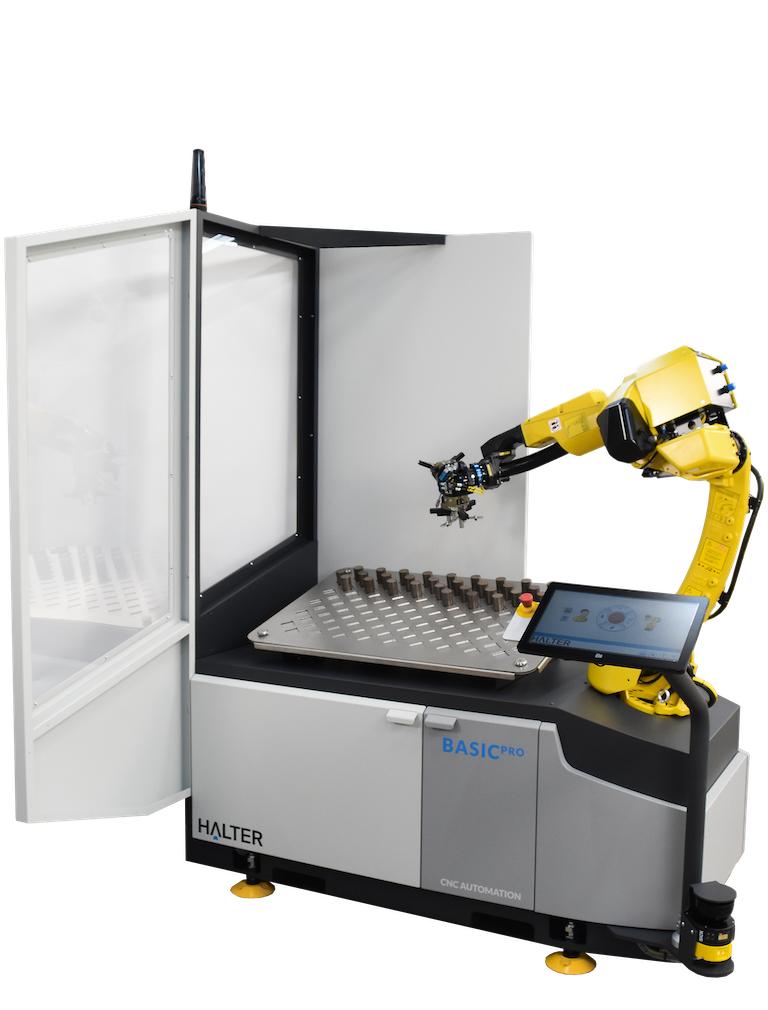

HALTER BasicPro 12 - front-4 HALTER Basic Pro 12 - side-2

Capacity & Specifications

Workpiece diameter (min - max) 0.39" - 5.31"
Minimum workpiece (L x W) 0.39" x 0.39"
Maximum workpiece (L x W) 5.31" x 5.31"
Height of workpiece (min - max) 0.39" - 5.91"
Maximum load capacity robot arm 26.45 lbs
Maximum total weight on table 793.66 lbs
Max. number of workpieces for grid plate 10-20 mm 173
Max. number of workpieces for grid plate 10-35 mm 104
Max. number of workpieces for grid plate 10-55 mm 64
Max. number of workpieces for grid plate 10-85 mm 31
Max. number of workpieces for grid plate 10-115 mm 22
Max. number of workpieces for grid plate 10-135 mm 14
Grid plate is height-adjustable in several positions
Rigid industrial construction
Placed on 3-point self-centering anchors
Fanuc 6-axis robot arm 26.45 lbs
Workpiece turnover station for two-sided machining Option
Adjustable multi-handling station for workpiece turnover, regripping and side-gripping Option
Status light Option
Can be connected to any CNC machine
Movable for transport and maintenance with easy repositioning by pallet truck
Automatic servo-driven door opener with integrated safety mechanism Option

Standard Features

Intuitive and graphical programming in 12 steps
Touch screen 15 inch
Free choice of pre-installed language
Graphic representation of machine utilization
Input can be entered in inches or mm
Automatic program storage

Standard functionalities

Inside and outside gripping
Workpiece loading in chuck with or without pressure star
Adjustable air blow distance
Eccentric loading and unloading
Robot park positioning
3-finger gripper or 2-finger gripper Choice
Separate grippers for raw and machined workpieces
Air blow system
Workpiece detection
Quickly adjustable gripper fingers
Workpiece-specific gripper fingers Option
Steplessly adjustable gripping force
Compact gripper design
Fanuc DCS area in combination with the Sick floor scanner
Closed safety circuit
270º laser scanner with stop and go function
Floor scanner slows down and stops the robot arm if operator approaches
Voltage 208 V
Peak consumption 30 A
Compressed air pressure 94.3 psi
Length 67.32"
Width 30.70"
Height 86.61"
Total weight 1433 lbs

Capacity
Workpiece diameter (min - max) 0.39" - 5.31"
Minimum workpiece (L x W) 0.39" x 0.39"
Maximum workpiece (L x W) 5.31" x 5.31"
Height of workpiece (min - max) 0.39" - 5.91"
Maximum load capacity robot arm 26.45 lbs
Maximum total weight on table 793.66 lbs
Max. number of workpieces for grid plate 10-20 mm 173
Max. number of workpieces for grid plate 10-35 mm 104
Max. number of workpieces for grid plate 10-55 mm 64
Max. number of workpieces for grid plate 10-85 mm 31
Max. number of workpieces for grid plate 10-115 mm 22
Max. number of workpieces for grid plate 10-135 mm 14
Grid plate is height-adjustable in several positions

System
Rigid industrial construction
Placed on 3-point self-centering anchors
Fanuc 6-axis robot arm 26.45 lbs
Workpiece turnover station for two-sided machining Option
Adjustable multi-handling station for workpiece turnover, regripping and side-gripping Option
Status light Option
Can be connected to any CNC machine
Movable for transport and maintenance with easy repositioning by pallet truck
Automatic servo-driven door opener with integrated safety mechanism Option

HALTER SmartControl

Standard Features

Intuitive and graphical programming in 12 steps
Touch screen 15 inch
Free choice of pre-installed language
Graphic representation of machine utilization
Input can be entered in inches or mm
Automatic program storage

Standard functionalities

Inside and outside gripping
Workpiece loading in chuck with or without pressure star
Adjustable air blow distance
Eccentric loading and unloading
Robot park positioning

Grippers
3-finger gripper or 2-finger gripper Choice
Separate grippers for raw and machined workpieces
Air blow system
Workpiece detection
Quickly adjustable gripper fingers
Workpiece-specific gripper fingers Option
Steplessly adjustable gripping force
Compact gripper design

Safety
Fanuc DCS area in combination with the Sick floor scanner
Closed safety circuit
270º laser scanner with stop and go function
Floor scanner slows down and stops the robot arm if operator approaches

Input
Voltage 208 V
Peak consumption 30 A
Compressed air pressure 94.3 psi

Dimensions
Length 67.32"
Width 30.70"
Height 86.61"
Total weight 1433 lbs
